Slots with rounded ends

Information on slots with rounded ends

Slots with rounded ends represent the standard version. They are also available in staggered rows (Lv) or straight rows (Lg). Whenever slots are specified it is important to indicate the edge of the sheet with which the long axis of the slots is to be parallel. Slot perforations are used in sieve plates and where the visual impression is important.

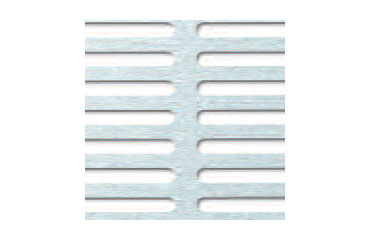

Slots with rounded ends in straight rows (Lg)

Slots with rounded ends in staggered rows (Lv)

Slots with rounded ends in offset rows (Lgv)

Surface finishing/appearance

w=2,0
l=20
t1=5,5
t2=25
A0=28,5%
Lg 2,0x20-5,5x25

w=6
l=30
t1=12
t2=36
A0=40%
Lg 6x30-12x36

w=1,5
l=10
t1=3
t2=14
A0=34,6%
Lv 1,5x10-3x14

w=3
l=20
t1=6
t2=25
A0=38,7%
Lgv 3x20-6x25

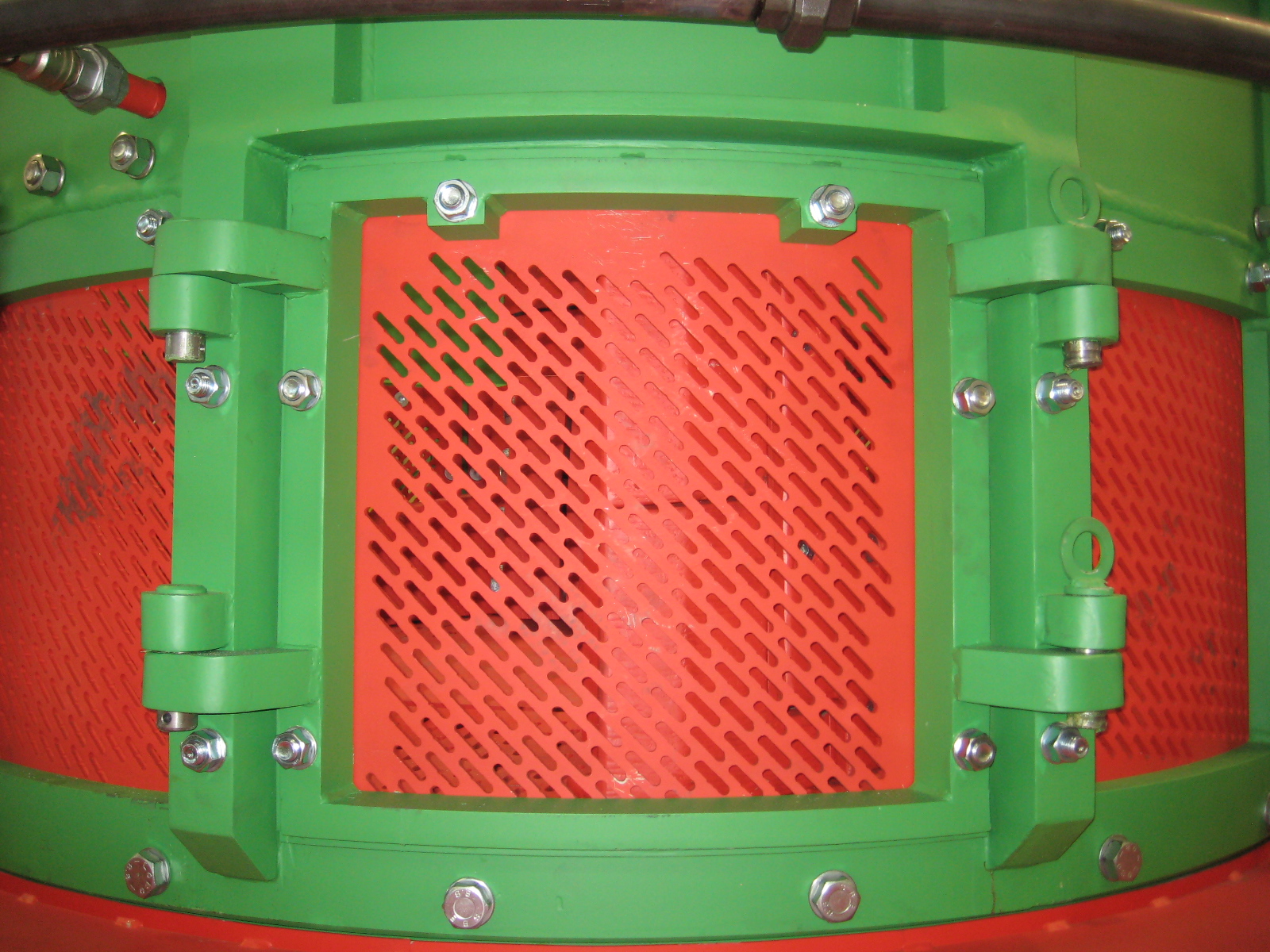

Application areas

Metal sheets with slots with rounded ends are used in many different application areas. On the right hand side you see a selection of our products in their designated application area.
